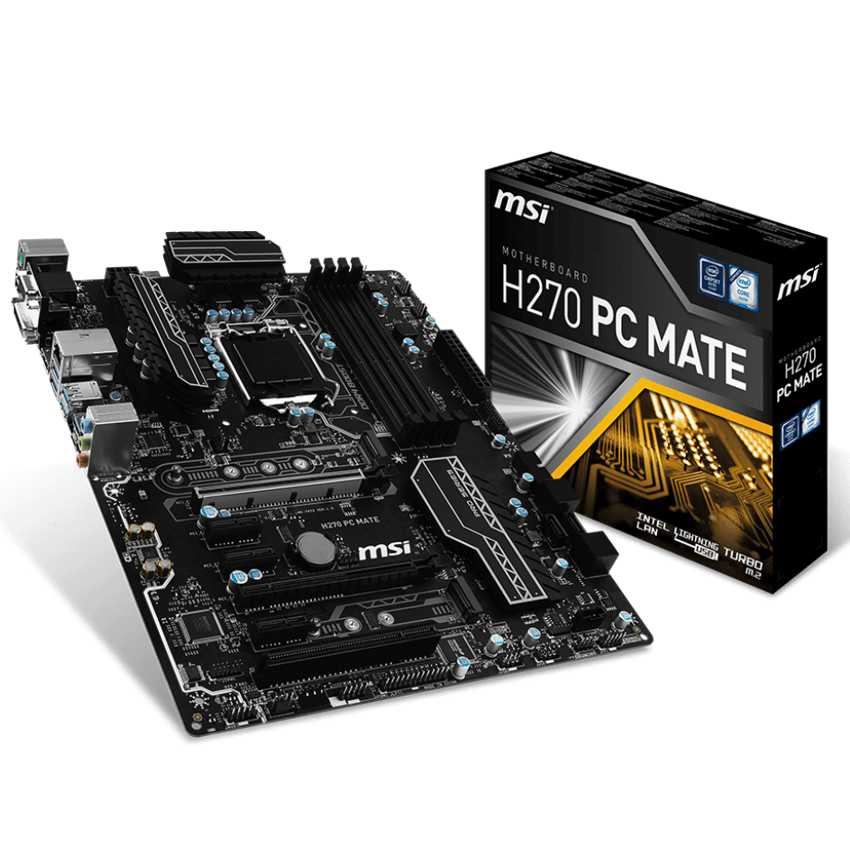

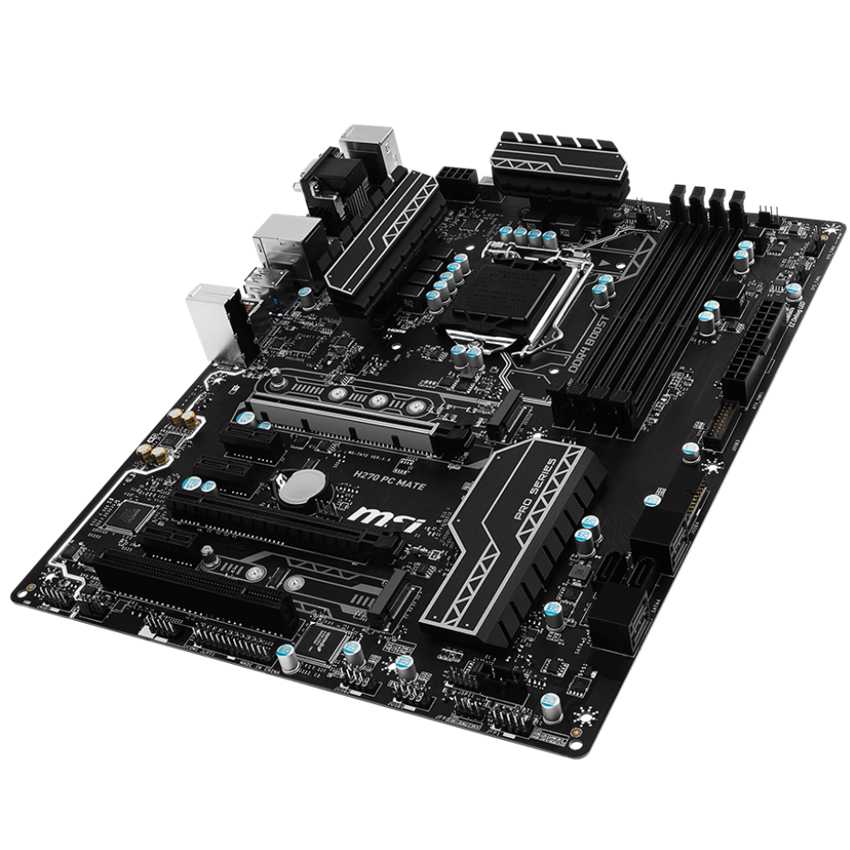

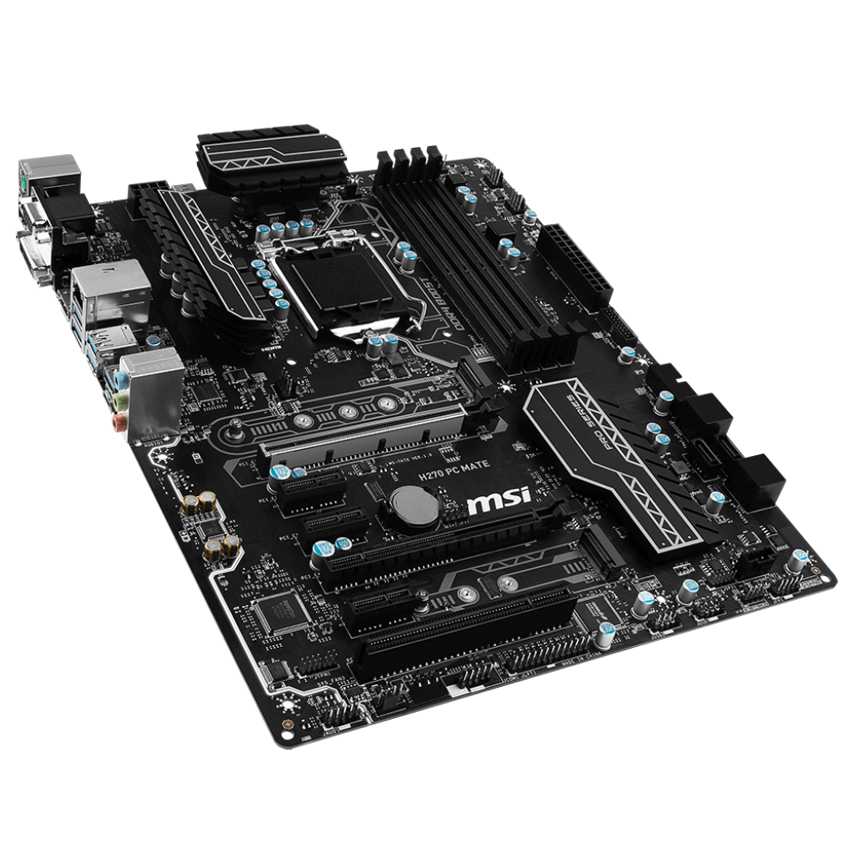

MSI H270 PC MATE

Descripción
- DDR4 Boost: Give your DDR4 memory a performance boost
- Audio Boost: Reward your ears with studio grade sound quality for a HI-FI experience
- EZ Debug LED: Easiest way to troubleshoot
- Twin Turbo M.2: Delivering Speeds Up to 32Gb/s, Intel Optane Memory Ready
- M.2 Genie: Setting up RAID for M.2 much easier and faster
- Lightning USB: Double bandwidth, supports USB 3.1 Gen2 Type A + Type C
- X-Boost: Great tool to boost your USB & Storage performance
- Doublo ESD Protection: Double layer grounding motherboard mounting holes

Especificaciones
CPU support: Supports 7th / 6th Gen Intel® Core? i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors
CPU socket: LGA 1151
Chipset: Intel® H270 Chipset
Graphics Interface:
- 2 x PCI-E 3.0 x16 slots
- 2-way CrossFire
Display Interface: VGA, DVI-D, HDMI
Memory support: 4 DIMMs, Dual Channel DDR4-2400
Expansion slots: 3 x PCI-E x1 slots, 1 x PCI slot
SATA / M.2 / U.2: 6 x SATA 6Gb/s ports, 2 x M.2 slots
Intel® Optane?: Intel® Optane? Memory Ready
SATA RAID: RAID 0,1,5,10
USB 3.1 Gen2: 2 x USB 3.1 Gen2 (Type A+C)
USB 3.1 Gen1: 8 x USB 3.1 Gen1
USB 2.0: 6 x USB 2.0
LAN: Intel® I219-V Gigabit LAN
Audio: 7.1-Channel High Definition Audio
Form Factor: ATX

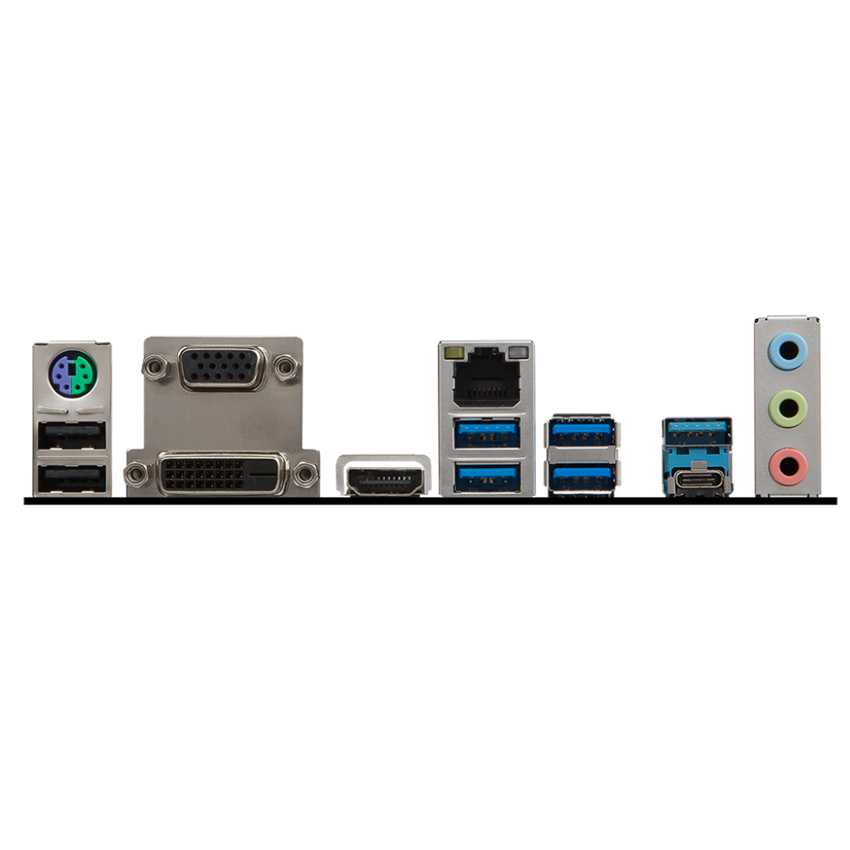

REAR CONNECTORS
- PS/2 Device Port
- VGA Port
- HDMI
- Intel® Gigabit LAN Port
- LIGHTNING USB 3.1 Gen2 Type-A
- HD Audio Connectors
- USB 2.0 Device Port
- DVI-D Port
- USB 3.1 Gen1 Type-A
- USB 3.1 Gen1 Type-A
- LIGHTNING USB 3.1 Gen2 Type-C
