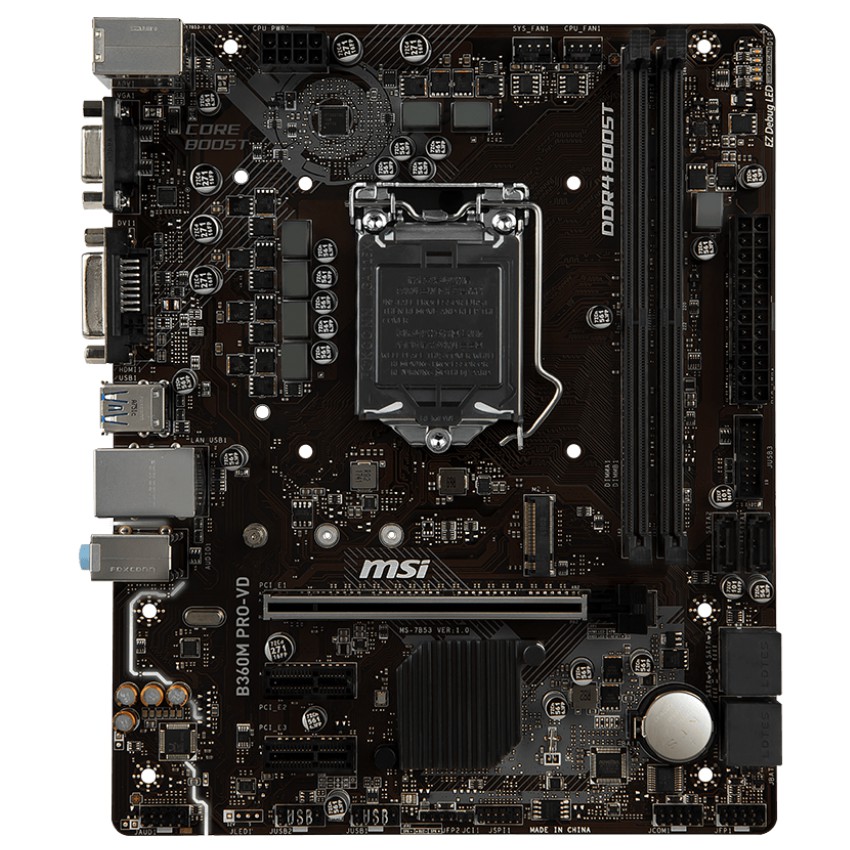

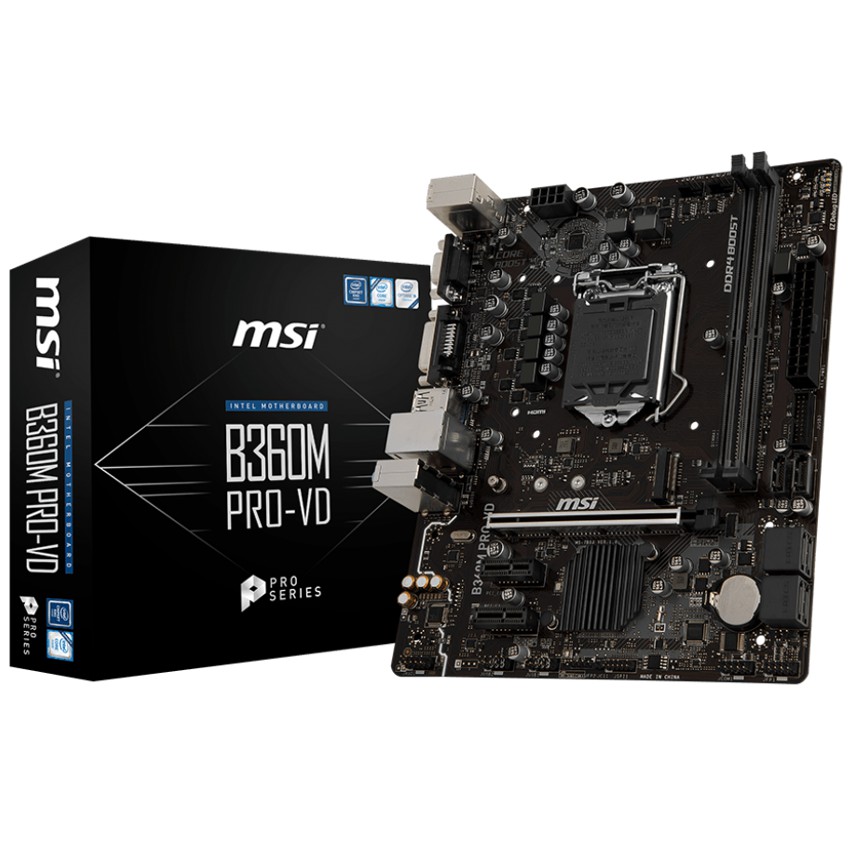

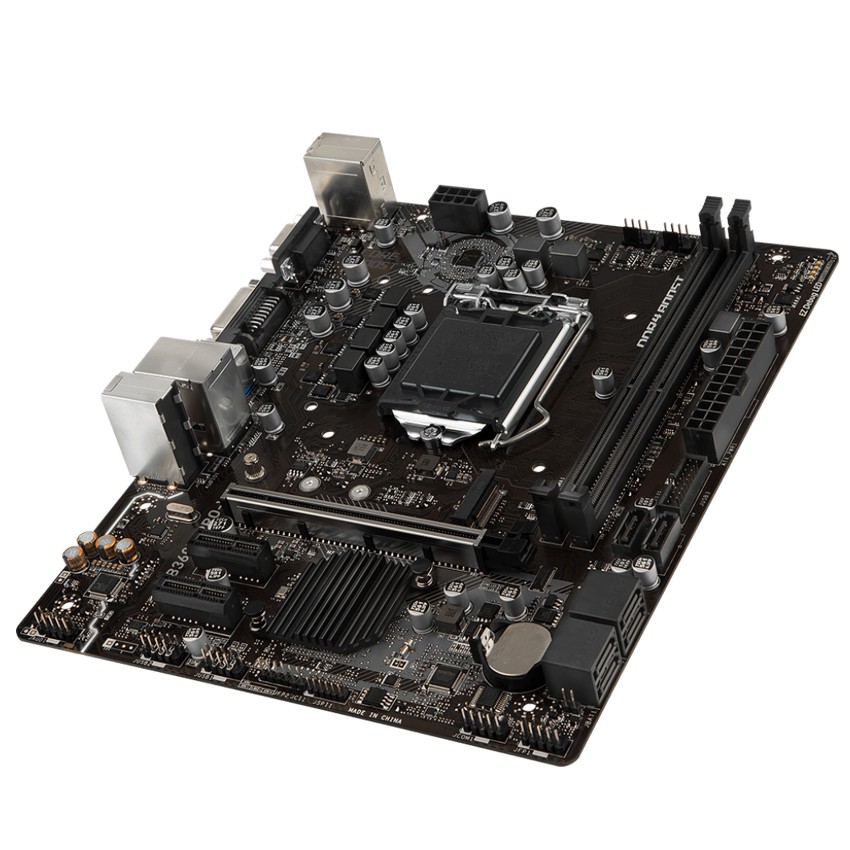

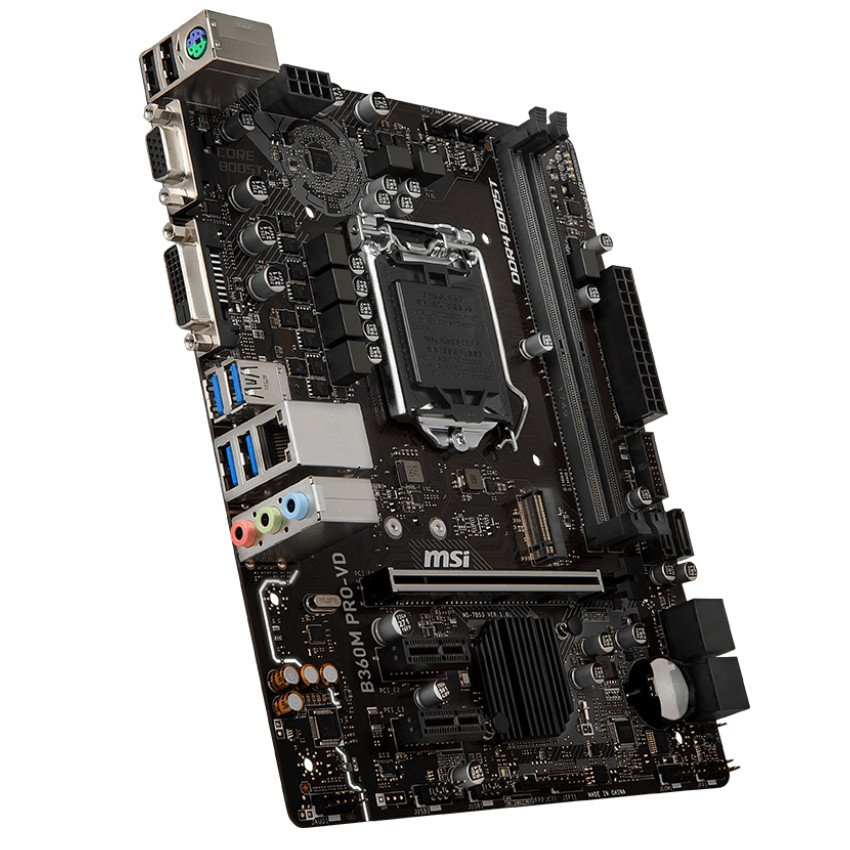

MSI B360M PRO-VD

Descripción
Supports 8th Gen Intel® Core? / Pentium® Gold/ Celeron® Processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
Audio Boost: Reward your ears with studio grade sound quality.
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Armor: Protecting VGA cards against bending and EMI for better performance,stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Especificaciones
SOCKET: 1151
CPU (MAX SUPPORT): i7
CHIPSET: Intel® B360 Chipset
DDR4 MEMORY: 2666/ 2400/ 2133 MHz
MEMORY CHANNEL: Dual
DIMM SLOTS: 2
MAX MEMORY (GB): 32
PCI-EX16: 1
PCI-E GEN: Gen3
PCI-EX1: 2
SATAIII: 6
M.2 SLOT: 1

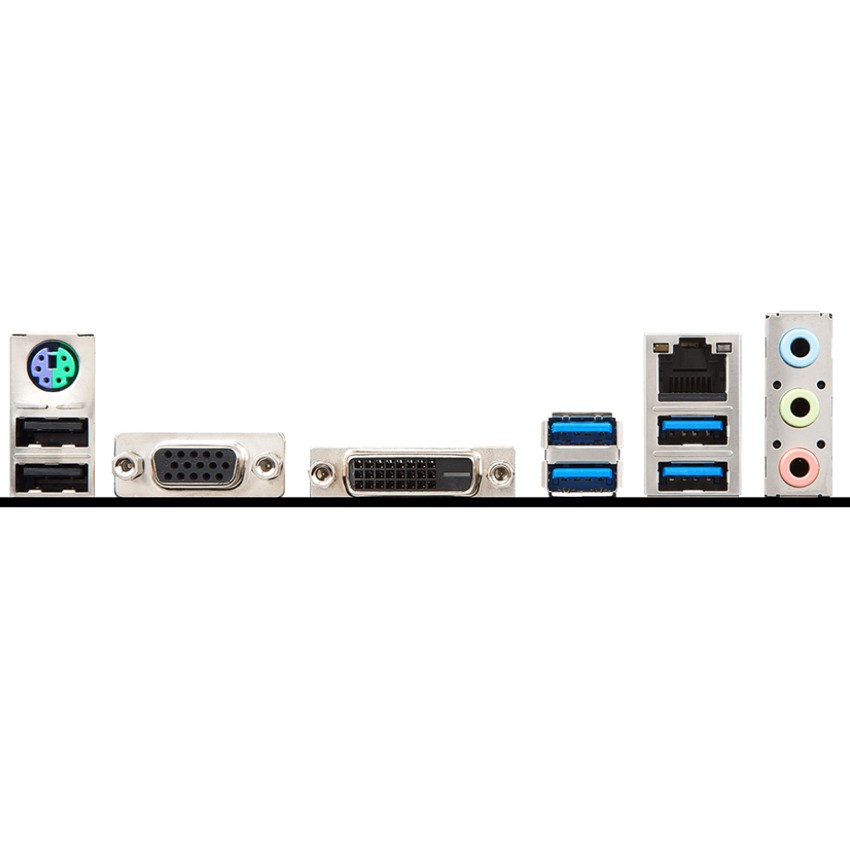

LAN: 10/100/1000*1
USB 3.1 PORTS (FRONT): 2(Gen1, Type A)
USB 3.1 PORTS (REAR): 4(Gen1, Type A)
USB 2.0 PORTS (FRONT): 4
USB 2.0 PORTS (REAR): 2
SERIAL PORTS(FRONT): 1
AUDIO PORTS (REAR): Realtek® ALC887 Codec
DVI-D: 1
VGA: 1
DIRECTX: 12
FORM FACTOR: m-ATX
