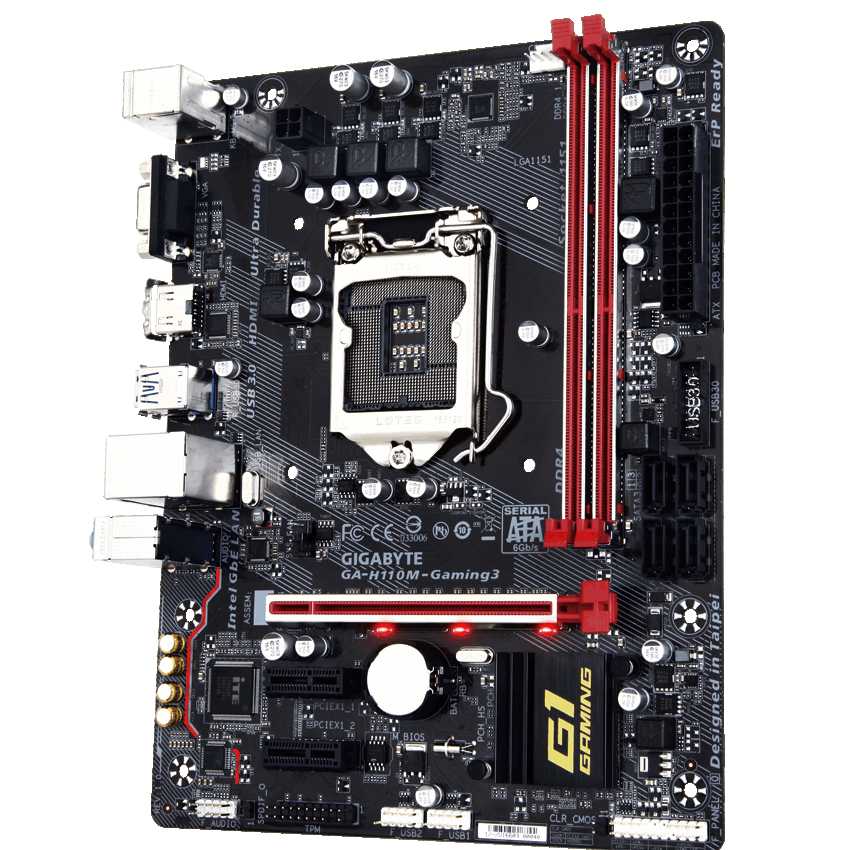

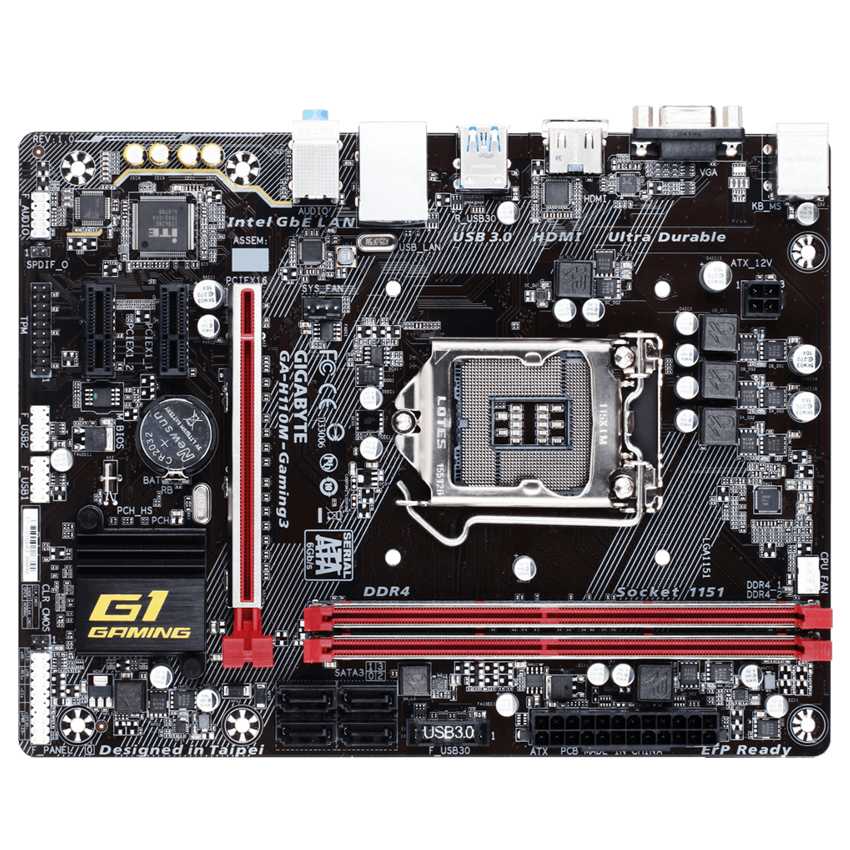

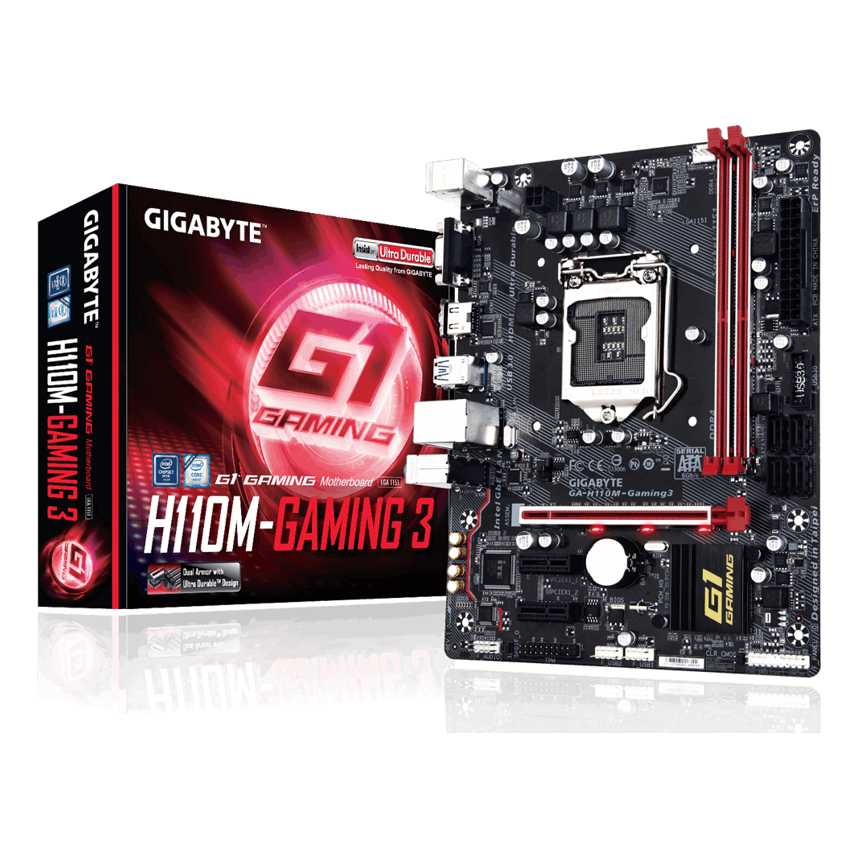

Gigabyte H110M-GAMING 3

Descripción
Supports 6th Generation Intel® Core? Processor
Dual Channel DDR4, 2 DIMMs
Ultra Durable Metal Shielding over PCIe and DDR Slots
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
HDMI 1.4, D-sub ports for multiple display
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE? APP Center, simple and easy use
Support Intel® Small Business Basics

Especificaciones
CPU
- Support for Intel® Core? i7 processors/Intel® Core? i5 processors/ Intel® Core? i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU

Chipset
- Intel® H110 Express Chipset

Memory
- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2133 MHz memory modules
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics
- Integrated Graphics Processor-Intel® HD Graphics support
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
- Support for up to 2 displays at the same time
- Maximum shared memory of 1024 MB

Audio
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out

LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots

Storage Interface
- 4 x SATA 6Gb/s connectors

USB
- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x Clear CMOS jumper

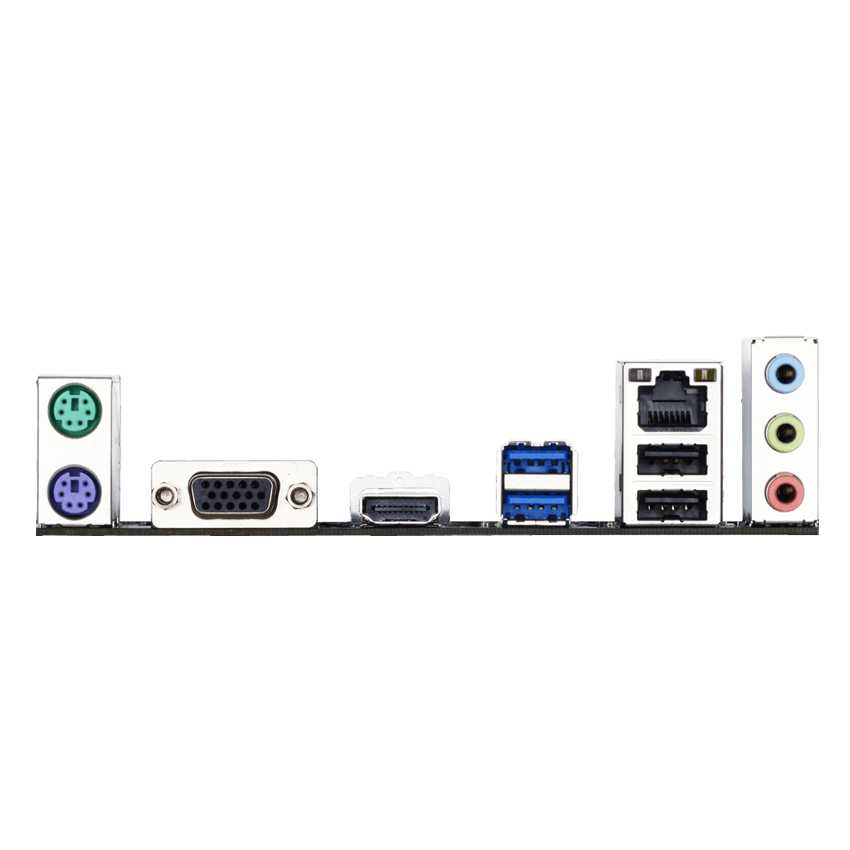

Back Panel Connectors
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller
- iTE® I/O Controller Chip

H/W Monitoring
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control

BIOS
- 1 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for APP Center
- 3D OSD
- @BIOS
- AutoGreen
- Cloud Station
- EasyTune
- Fast Boot
- ON/OFF Charge
- Smart TimeLock
- Smart Keyboard
- Smart Backup
- System Information Viewer
- USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install

Bundle Software
- Norton® Internet Security (OEM version)
- cFosSpeed

Operating System
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit

Form Factor
- Micro ATX Form Factor; 22.6cm x 17.4cm
