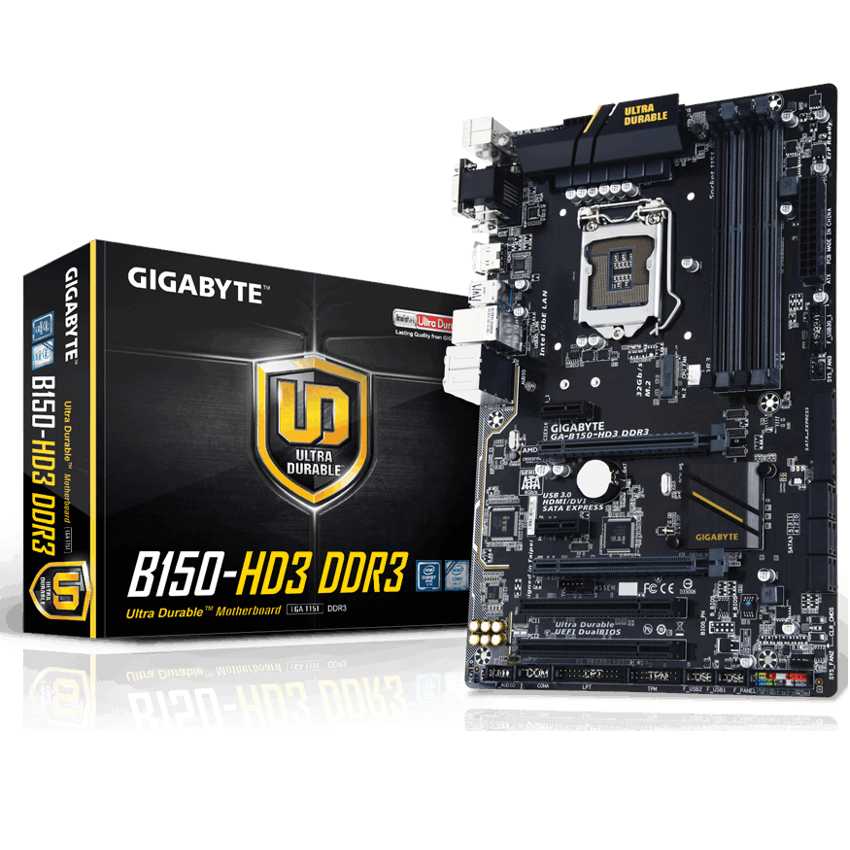

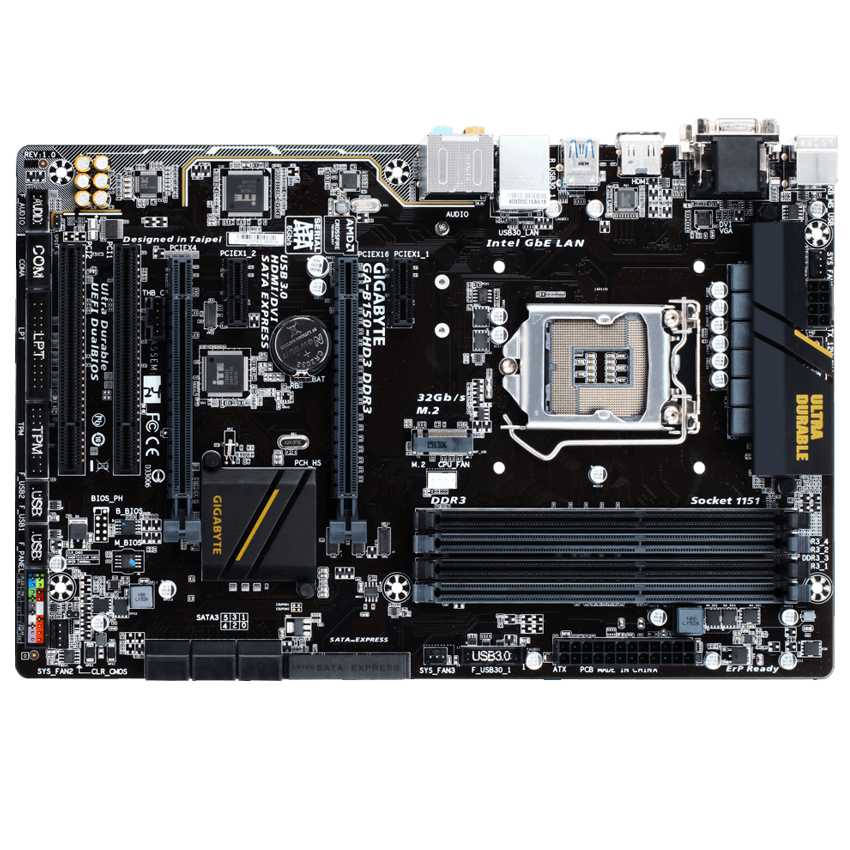

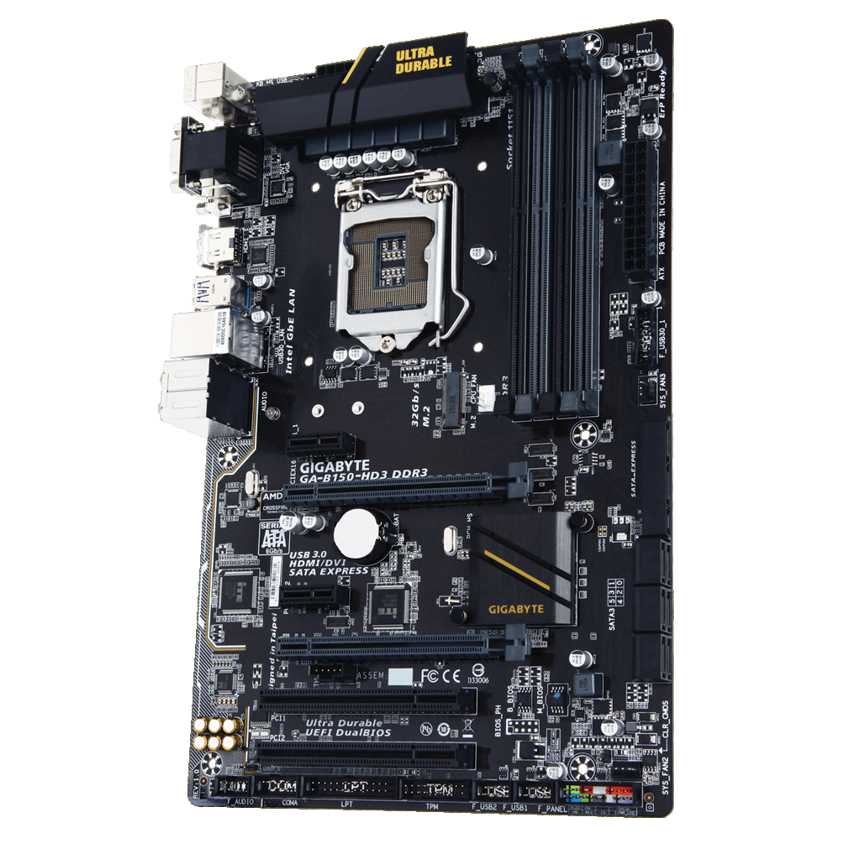

Gigabyte GA-B150-HD3 DDR3

Descripción
Supports 6th Generation Intel® Core? Processor
Dual Channel DDR3/DDR3L, 4 DIMMs
2-Way Graphics with Premium PCIe Lane
PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
SATA Express Connector for up to 16Gb/s Data Transfer
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
Intel® GbE LAN with cFosSpeed Internet Accelerator Software
APP Center Including EasyTune? and Cloud Station? Utilities
GIGABYTE UEFI DualBIOS? Technology
Support Intel® Small Business Advantage

Especificaciones
CPU
- Support for Intel® Core? i7 processors/Intel® Core? i5 processors/Intel® Core? i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU

Chipset
- Intel® B150 Express Chipset

Memory
- 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR3/DDR3L 1866(OC)/1600/1333 MHz memory modules
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules

Onboard Graphics    Integrated Graphics Processor- Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
- Support for up to 3 displays at the same time
- Maximum shared memory of 512 MB

Audio
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out

LAN
- Intel® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
- 2 x PCI slots

Multi-Graphics Technology
- Support for 2-Way AMD CrossFire? technology

Storage Interface
- 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
- 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors

USB
- 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x Thunderbolt? add-in card connector
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper

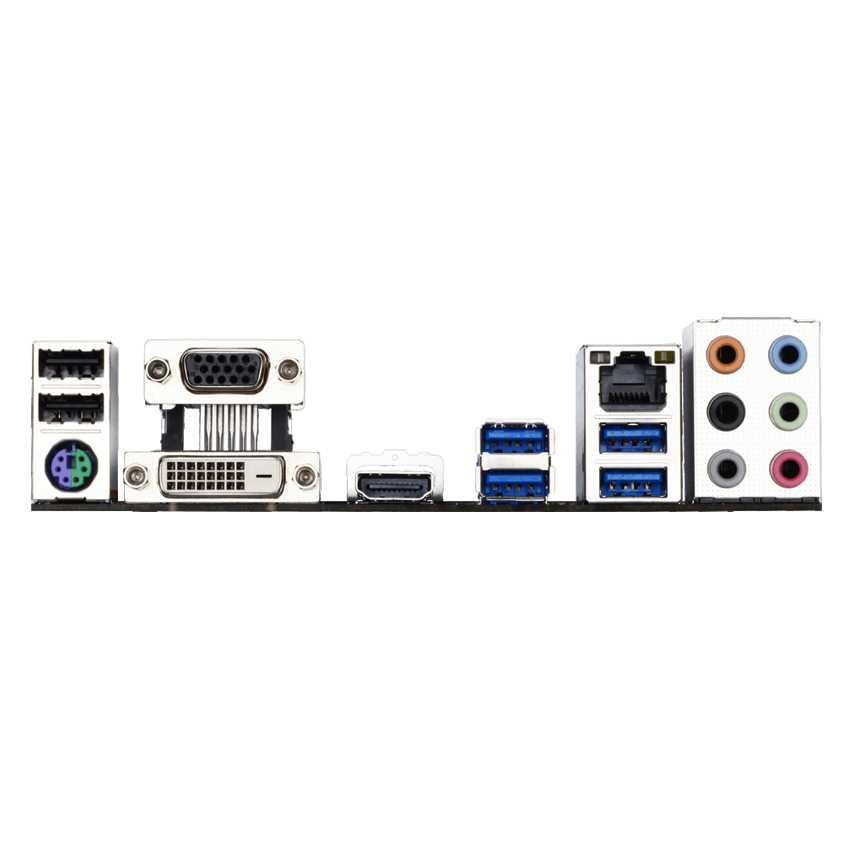

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)

I/O Controller
- iTE® I/O Controller Chip

H/W Monitoring
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control

BIOS
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS?
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for APP Center
  - 3D OSD
  - @BIOS
  - AutoGreen
  - Cloud Station
  - EasyTune
  - Fast Boot
  - Smart TimeLock
  - Smart Keyboard
  - Smart Backup
  - System Information Viewer
  - USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install

Bundle Software
- Norton® Internet Security (OEM version)
- Intel® Small Business Advantage
- cFosSpeed

Operating System
- Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit

Form Factor
- ATX Form Factor; 30.5cm x 20.0cm
