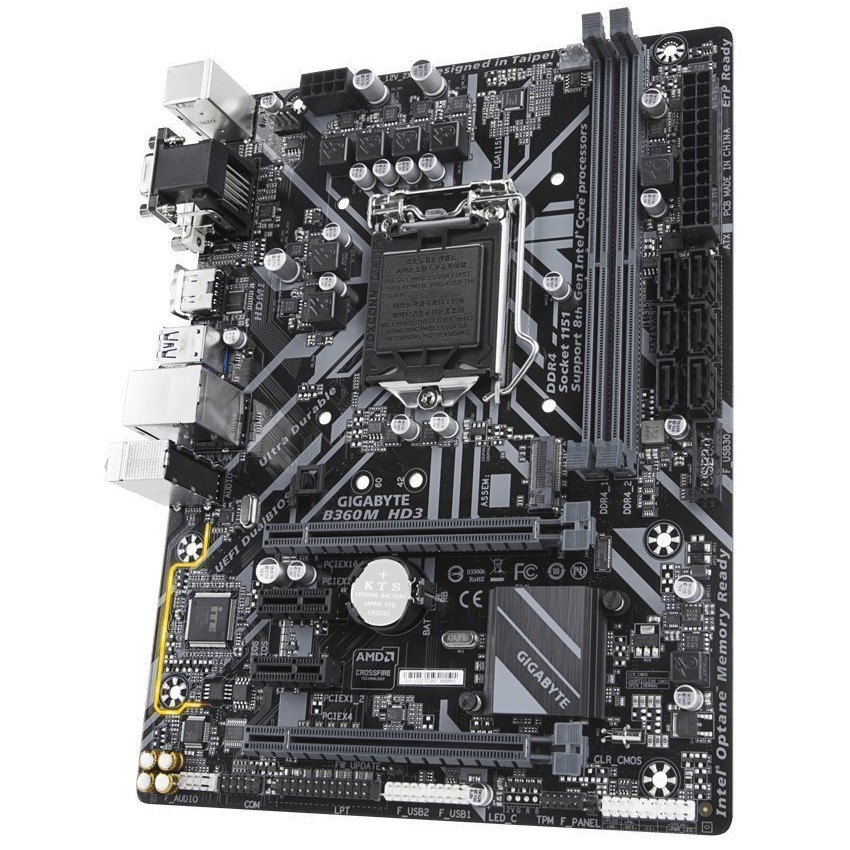

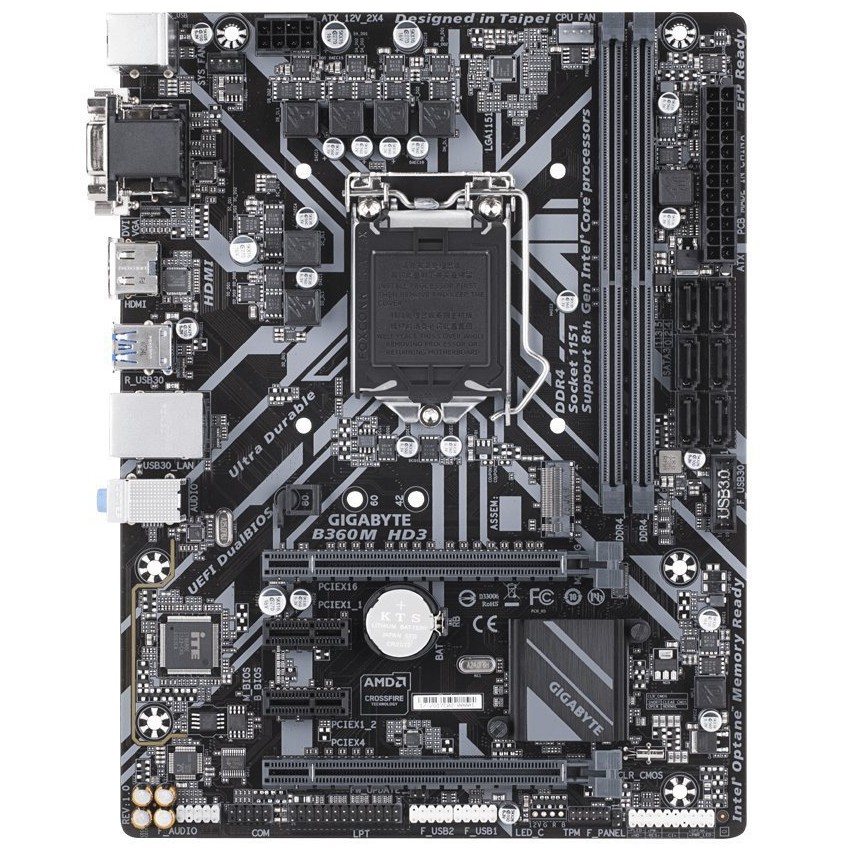

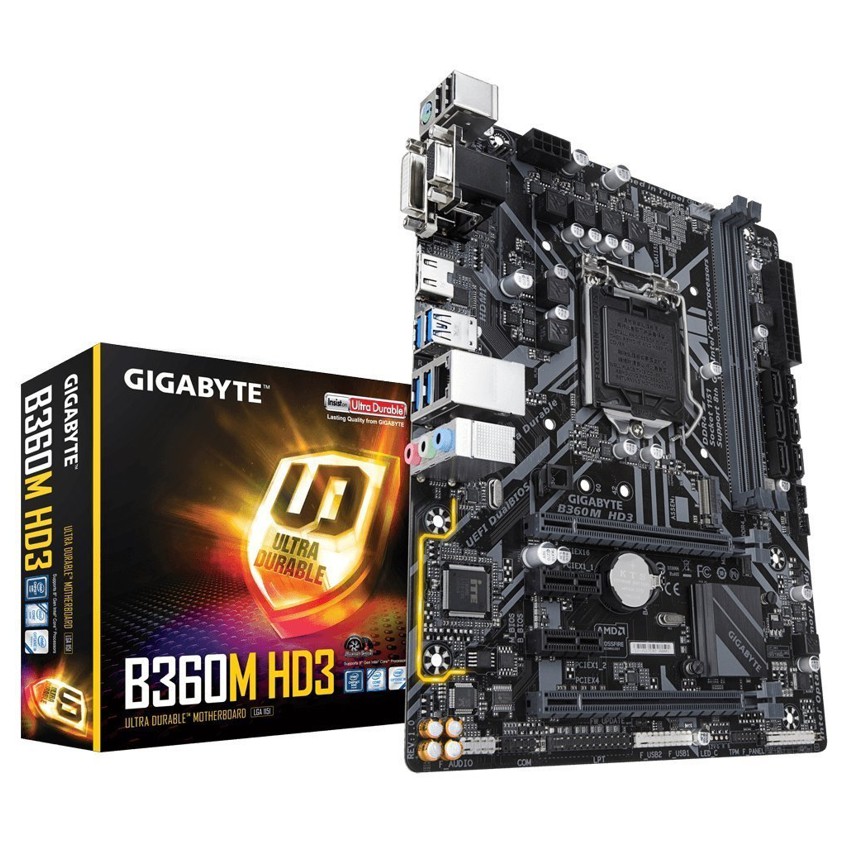

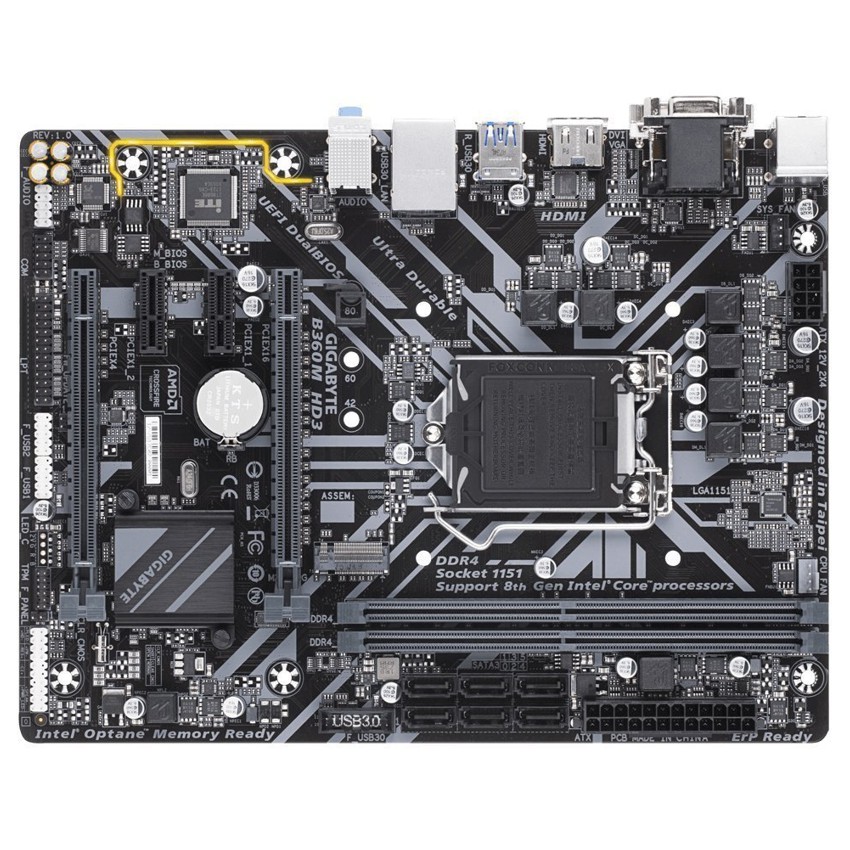

Gigabyte B360M HD3

Descripción
Supports 8th Gen Intel® Core? Processors
Dual Channel Non-ECC Unbuffered DDR4
New Hybrid Digital PWM Design
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
CEC 2019 Ready, Save the Power as Easy as One Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Anti-Sulfur Resistors Design
Ultra Durable? 15KV Surge LAN Protection
Intel® Optane? Memory Ready
GIGABYTE UEFI DualBIOS?

Especificaciones
CPU:
- Support for 8th Generation Intel® Core? i7 processors/Intel® Core? i5 processors/Intel® Core? i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset:
- Intel® B360 Express Chipset
Memory:
- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core? i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
- * The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
- * Support for HDMI 1.4 version and HDCP 2.2.
- Support for up to 3 displays at the same time
- Maximum shared memory of 1 GB
Audio:
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN:
- Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots:
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 2 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface: Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
- 6 x SATA 6Gb/s connectors
- * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
- Intel® Optane? Memory Ready
- Multi-Graphics Technology:
- Support for AMD Quad-GPU CrossFire? and 2-Way AMD CrossFire? technologies
USB: Chipset:
- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors:
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 6 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x parallel port header
- 1 x serial port header
- 1 x Clear CMOS jumper

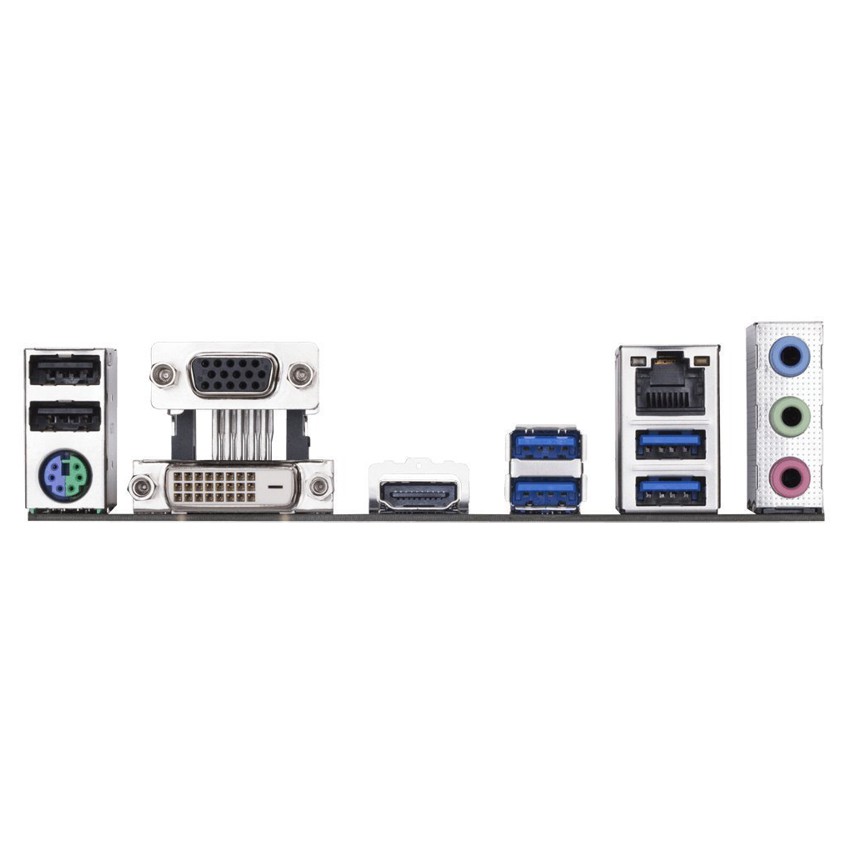

Back Panel Connectors:
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
I/O Controller:
- iTE® I/O Controller Chip
H/W Monitoring:
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
- Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
- 3D OSD
- @BIOS
- AutoGreen
- Cloud Station
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- Platform Power Management
- RGB Fusion
- Smart Backup
- Smart Keyboard
- Smart TimeLock
- Smart HUD
- System Information Viewer
- USB Blocker
- V-Tuner
- Support for Q-Flash
- Support for Xpress Install
- Bundle Software:
- Norton® Internet Security (OEM version)
Operating System:
- Support for Windows 10 64-bit
Form Factor:
- Micro ATX Form Factor; 24.4cm x 18.5cm
